In our computing experiences, we understand that an efficient CPU air cooler plays a critical role in maintaining the performance of our computers. The very essence of an air cooling solution is to dissipate heat produced by the CPU, ensuring that it runs at optimal temperatures.
This is vital — an overheated CPU can lead to reduced efficiency, potential data throttling, and in extreme cases, hardware failure. We’ve found that air coolers, with their combination of heat sinks and fans, offer a reliable and generally more affordable means to control the heat output of processors.
Through our use, we’ve noted that the efficiency of a CPU air cooler is largely determined by its design and the quality of its components. A well-designed heat sink with ample surface area and a fan capable of moving a significant amount of air can perform remarkably well in extracting heat from the CPU. We’ve also observed that while air cooling may not always match the cooling power of liquid solutions, advancements in air cooler technology have narrowed the gap significantly, especially in well-ventilated cases.
The choice of a cooling solution often comes down to a balance between cooling performance, noise levels, and price. We value air coolers for their simplicity and ease of installation. They provide us a straightforward, often maintenance-free cooling option without the potential complexities and points of failure associated with liquid cooling, such as leaks. It’s clear to us that for many users and a wide array of use cases, a high-quality air cooler can deliver the desired performance, making it an integral component of an efficient, cooling system.
Contents
Fundamentals of CPU Air Cooling
In CPU air cooling, our focus is on efficiently conducting heat away from the processor using a combination of physical components and principles of thermodynamics.
Heat Transfer and Thermodynamics
Heat transfer is the core principle behind air cooling. Our processors produce heat during operation, which must be dissipated to maintain optimal performance. We leverage thermodynamics to transfer this heat from the processor to the air. This is achieved through conduction, where heat travels from the hot CPU to a heatsink.
The heatsink, typically made of metals like aluminum or copper, then transfers the heat to the fins, which provide a large surface area for heat exchange. The airflow generated by the fans enhances the rate of heat transfer away from the fins, functioning under the principle of forced convection; effectively, the more air we move over the fins, the cooler the CPU operates.

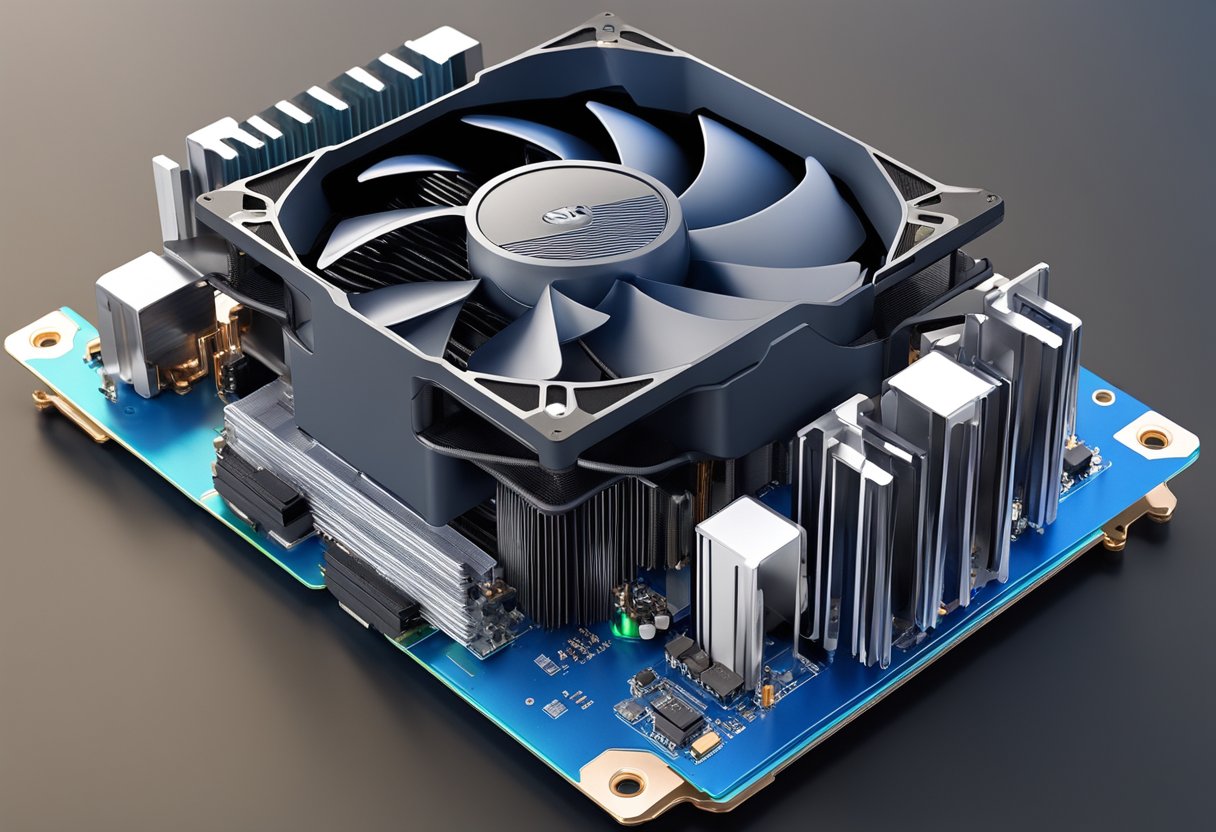

Air Cooler Components
The primary components of an air cooler are:
- Heatsink: Sits directly on the processor, absorbing heat.
- Fins: Increase surface area for better heat dissipation.
- Heat Pipes: Conduct heat from the processor to the fins. They are often filled with a liquid that vaporizes at high temperatures, transferring heat rapidly through evaporation and condensation cycles.
- Fans: Propel air through the fins, increasing heat transfer by forced convection.
Here’s a simple illustration of the components arrangement:
| Component | Function | Material/Feature |
|---|---|---|
| Processor | Generates heat during operation. | – |
| Heatsink | Absorbs heat from the processor. | Copper/Aluminum |
| Fins | Dissipates heat through a large surface area. | Part of the heatsink structure |
| Heat Pipes | Transfer heat from the CPU to the fins quickly. | Copper, with liquid inside |
| Fans | Drive airflow over the fins to cool them down. | Various sizes and speeds |
Understanding these components allows us to optimize our CPU cooling strategy efficiently, keeping our processors within safe thermal limits and ensuring long-term performance stability.
Selecting the Right CPU Air Cooler
When we select a CPU air cooler, we consider factors such as compatibility with CPU sockets, physical size, and performance needs, especially if overclocking is a priority.
Compatibility with CPU Sockets
The first step in our selection process is ensuring the air cooler fits our CPU socket. For Intel processors like those using the LGA 1700 or LGA 1200 sockets, and AMD chips like the Ryzen 9 7950X that may use the AM5 socket, it’s vital to check the cooler’s specifications. Manufacturers will list compatible sockets, so we match our motherboard‘s socket to avoid installation issues.
Size and Clearance Considerations
We must consider both the size of the cooler and the space inside our case. Large coolers can interfere with RAM slots or other components on the motherboard if the clearance isn’t sufficient. Compact cases require low-profile air coolers to fit. We measure the dimensions of the available space, keeping in mind both the height of the cooler and the dimensions of our case before making a decision.
Air Coolers for Overclocking
For those of us interested in overclocking, a cooler’s thermal capacity is crucial. Generally, we look for coolers with a combination of copper heat pipes for superior heat conductivity and aluminum fins that dissipate heat effectively. A cooler’s TDP (Thermal Design Power) rating should exceed the TDP of our overclocked CPU to avoid overheating. High-quality air coolers with larger heat sinks and fans can handle increased thermal loads from overclocking the CPU like the Ryzen 9 7950X.
Installation and Maintenance
Properly installing and maintaining a CPU air cooler ensures longevity and peak performance of your system. We focus on three crucial steps: secure mounting, correct thermal paste application, and regular cleaning to manage heat and noise levels efficiently.
Mounting and Securing the Air Cooler
When installing an air cooler, we ensure compatibility with our CPU socket and case size. Installing the mounting bracket is the first step; positioning it correctly on the motherboard serves as the foundation for the cooler. After the bracket is in place, we carefully lower the cooler onto the CPU, aligning it with the bracket before securing it with the provided accessories. It should sit snugly, with no wobble, ensuring optimal contact with the CPU for heat transfer.
Thermal Paste Application
We apply thermal paste to create an efficient thermal bond between the CPU and the cooler. A pea-sized dot in the center of the CPU typically suffices. As the cooler is mounted, the paste spreads evenly across the CPU surface. This eliminates air gaps that can insulate heat, rather than transferring it to the heatsink.
Cleaning and Upkeep
Over time, dust accumulation can impact the cooler’s efficiency and noise level. We regularly clean the heatsink fins and fans with compressed air. Additionally, it is a good practice to check and, if necessary, replace thermal paste annually to maintain effective thermal conductivity. For system builders and upgraders, safeguarding the cooler also involves ensuring the fans are unobstructed and the surrounding cables are neatly managed to optimize airflow.
Advanced Topics in CPU Air Cooling
In this section, we’ll explore the nuances of air cooling, including how case design can impact performance, a precise comparison to liquid cooling, and the importance of acoustic performance.
Impact of Case Design on Air Cooling
The design of a computer case plays a crucial role in air cooling efficiency. A Mid-Tower Case is often a balanced choice, allowing for adequate airflow while accommodating high-quality coolers like the Noctua NH-D15. Conversely, a Small Form Factor case can restrict airflow and may require a Low-Profile CPU Cooler to fit the compact space. Effective case design should promote a positive pressure environment, with more intake than exhaust, to minimize dust and ensure efficient heat expulsion from the CPU.
- Intake and Exhaust Ratio: Ideal balance ensures positive pressure.
- Cooler Compatibility: Dimensions must match the CPU coolers, like Be Quiet! Pure Rock 2 or Deepcool AS500 Plus.
- Case Ventilation: Proper cutouts and filters aid in superior air passage.
Comparing Air Cooling with Liquid Cooling
When we compare air cooling to liquid cooling, it is important to consider the specific needs of the system. Air coolers, such as the Noctua NH-D15, are often more than sufficient for a Gaming PC running an Alder Lake CPU. For extreme scenarios, like an overclocked AMD Threadripper, a robust liquid system might become necessary. However, the simplicity and reliability of air coolers often make them the preferred choice for most users.
- Simplicity: Air coolers require less maintenance than liquid systems.
- Reliability: Fewer moving parts reduce failure points compared to liquid cooling.
- Effectiveness: High-quality air coolers can approach the efficiency of liquid coolers in some instances.
Acoustic Performance Considerations
We also must consider the noise levels when selecting air coolers. Coolers like the Be Quiet! Pure Rock 2 are designed for silent operation, which is crucial for a quiet workspace or gaming environment. The number and quality of the PC Fans included with the cooler, their RPM, and the quality of their bearings affect the overall noise output. Users who prioritize low noise levels may opt for passive or low-profile air coolers, although these may offer less cooling capacity for high-temperature components like a GPU under load.
- Fan Quality: High-quality bearings and precision blades reduce noise.
- Fan Speed: Controlled RPM levels can minimize acoustic output.
- Cooler Design: Heatsink design impacts how quietly air is moved through the fins.
