B550 vs X570 Motherboards: Performance and Features Comparison

When looking to build or upgrade a PC, choosing the right motherboard is crucial for ensuring compatibility and performance. We often find ourselves comparing the AMD B550 and X570 chipsets, as they are popular among PC enthusiasts for their solid balance of features and power. The B550 motherboards offer a more cost-effective foundation for building a mid-range system while supporting many of the same CPUs as the higher-end X570.

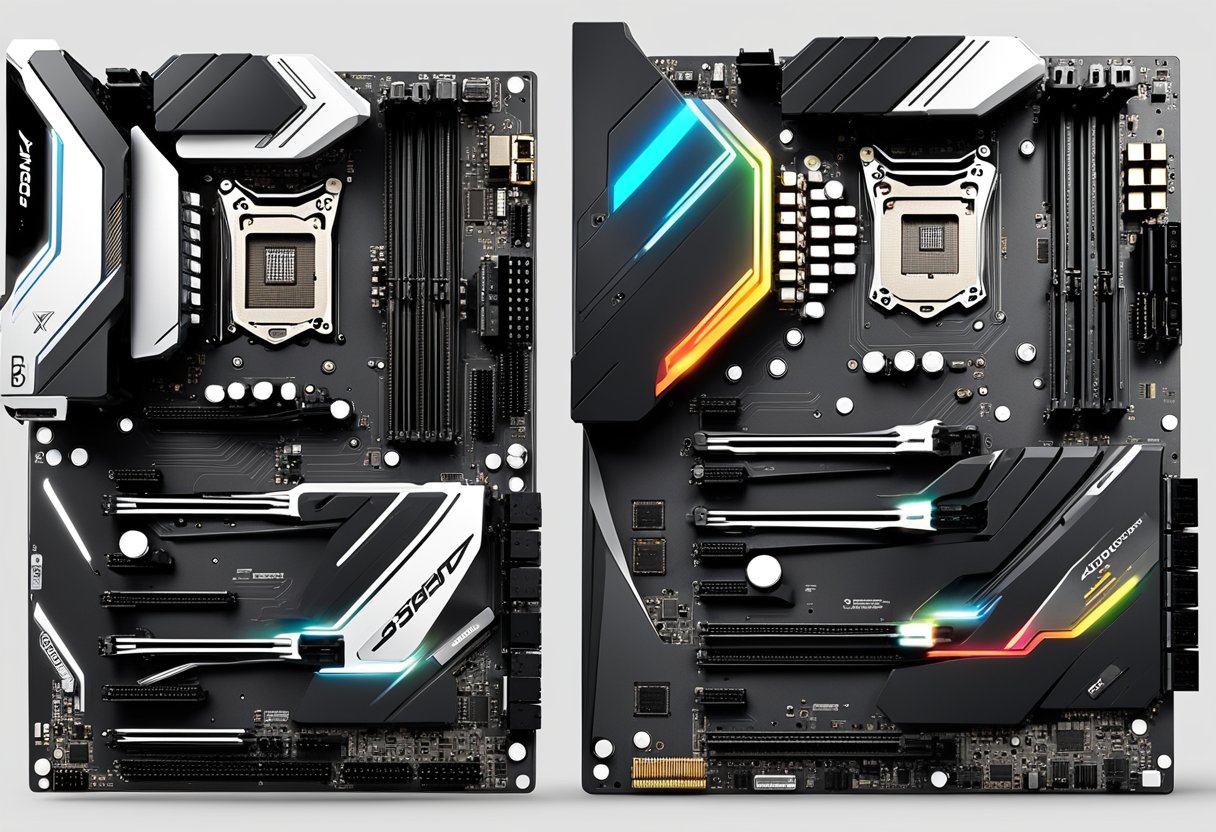

A comparison of b550 and x570 motherboards, side by side with their components clearly visible and labeled

The X570 motherboards appeal to those aiming for high-end builds with more robust connectivity options. This chipset is known for its additional PCIe 4.0 lanes, which not only future-proof the system but also enhance capabilities for those needing more bandwidth for graphics cards, NVMe drives, and other expansion cards. We take a practical look at the differences to help you ascertained which chipset aligns best with your computing needs.

Important Differences:
  • The X570 chipset integrates more PCIe 4.0 lanes, advantageous for expansion and multi-GPU configurations.
  • B550 is a compelling choice for those who do not require the extensive connectivity that X570 offers.
  • Both B550 and X570 support overclocking, but X570 may have an edge due to better power delivery and thermal solutions.

Chipset Features and Specifications

We’re looking into the heart of what makes B550 and X570 motherboards tick—their features and specifications. These chipsets are keystones for building a Ryzen-based system, with distinctions in connectivity and support that could sway your decision.

A comparison chart showing key chipset features and specifications of b550 and x570 motherboards

Support for Ryzen Processors

Both the B550 and X570 support AMD’s Ryzen 5000-series CPUs out of the box, offering users reliable performance and compatibility. They serve as upgrades from their predecessors, B450 and X470, ensuring future-proofing with the latest AMD processors.

PCIe Connectivity

B550 Chipset X570 Chipset
PCIe 3.0 lanes from the chipset PCIe 4.0 lanes from the chipset, ensuring greater bandwidth
Limited PCIe 4.0 lanes directly connected to the CPU More PCIe 4.0 lanes for multi-GPU setups or NVMe storage arrays

In our experience, the additional PCIe 4.0 lanes provided by the X570 chipset can be a decisive factor when planning for high-speed components, including graphics cards and NVMe storage devices.

USB and Storage Options

B550 Chipset: Usually offers a generous number of USB 3.2 Gen 2 ports and supports SATA and NVMe storage, which effectively meets the needs of the mainstream user.

X570 Chipset: Typically includes more extensive USB solutions, such as additional USB 3.2 Gen 2 ports, and boasts robust NVMe and SATA storage support that caters to power users looking for maximum connectivity and performance.

We’ve observed that users requiring extensive peripheral connectivity and extensive storage configurations tend to lean towards X570, but B550 also provides ample options for everyday use and standard workloads.

Performance and Overclocking Capabilities

In our comparison of B550 versus X570 motherboards, a key area where they differ strikingly is their performance in overclocking scenarios, influenced by VRM quality and power delivery plus support for CPU and RAM overclocking.

VRM and Power Delivery

When assessing the performance potential of B550 and X570 motherboards, their Voltage Regulator Modules (VRMs) and power delivery systems are crucial. X570 motherboards stand out with more robust VRM configurations and advanced power delivery, accommodating the greater power requirements of high-end CPUs. This is reflected in the chipset’s higher power draw, with X570 rated at 15W compared to B550’s 6W.

While B550 motherboards provide competent power delivery, they may be challenged when pushing the limits of performance and stability with overclocked high-end CPUs. Our examination shows that X570 boards typically offer better heat dissipation through active cooling solutions, optimizing performance during overclocking endeavors.

CPU and RAM Overclocking

Feature Advantage
CPU Overclocking X570 provides more extensive support for CPU overclocking with enhanced VRM performance, ideal for enthusiasts looking to maximize CPU potential.
RAM Overclocking Both chipsets support RAM overclocking, however, X570 platforms may offer slightly better stability and performance margins with high-speed memory.
PCIe 4.0 Lanes X570 motherboards deliver more PCIe 4.0 lanes, allowing for higher bandwidth and better performance in multi-GPU setups and NVMe storage configurations.

We observe that both B550 and X570 chipsets support overclocking for both CPU and RAM, giving users the freedom to enhance performance. The PCIe 4.0 support found on X570 platforms further complements overclocking capability, with additional lanes available for high-speed components that can benefit from the bandwidth, such as NVMe SSDs. In our experience, enthusiasts who aim for the highest performance benchmarks often prefer X570 due to these advantages.

Compatibility and Expansion

When selecting between B550 and X570 motherboards, it’s crucial to consider their compatibility with processors and potential for future expansion. We’ll delve into the specifics of how these chipsets manage GPUs, CPU sockets, and connections for peripherals and networking.

GPU and Multi-GPU Support

B550: Supports a single GPU and offers PCIe 4.0 only on the first x16 slot when paired with Ryzen 3000 or 5000 series CPUs. Provides PCIe 3.0 for additional slots.
X570: Provides more bandwidth with PCIe 4.0 across all PCIe slots, beneficial for multiple GPU setups and high-speed NVMe drives.

AM4 and Future AMD Sockets

Both B550 and X570 motherboards are built around the AM4 socket, working with a range of AMD Ryzen processors. While they support the Ryzen 3000 and 5000 series, B550 typically does not support Ryzen 2000 series processors. Both chipsets are designed with backward and forward compatibility in mind, but it’s uncertain how they will align with future AMD sockets beyond AM4, as that’s up to AMD’s roadmap.

Connectivity for Peripherals and Networking

Feature B550 X570
USB Ports USB 3.2 Gen 2 support Additional USB 3.2 Gen 2 support
M.2 Slots Usually single PCIe 4.0 Multiple PCIe 4.0 possible
Ethernet Up to 2.5Gbps supported Up to 10Gbps with premium models
Wi-Fi Wi-Fi 6 support (depends on model) Wi-Fi 6 support (more common than B550)

We see that X570 motherboards often provide more connectivity options and flexibility for both peripherals and networking due to their extensive PCIe 4.0 support and additional USB ports. This makes X570 an attractive option for users requiring extensive high-speed connections and looking to future-proof their system.

Price Considerations and Summary

In evaluating B550 and X570 motherboards, price is a critical factor influencing a builder’s decision. Choices often reflect the balance between cost and desired features for specific use cases, such as gaming or content creation.

Choosing for Budget vs High-End Builds

When considering a build within a tight budget, B550 motherboards usually present a more cost-effective option. They provide a solid foundation for systems centered around Ryzen 5 and Ryzen 7 processors, which are sufficient for standard gaming and productivity tasks. On the other hand, for high-end builds, especially with Ryzen 9 CPUs that demand robust performance, the X570 motherboards justify their higher price with additional features like more PCIe Gen 4 lanes, which can be crucial for multi-GPU setups or high-speed NVMe storage.

Pros for Budget B550 Builds:

  • Affordability
  • Sufficient performance for most tasks

Cons:

  • Limited PCIe 4.0 support
  • May lack some advanced features

Pros for High-End X570 Builds:

  • More expansive connectivity and bandwidth
  • Better future-proofing with PCIe 4.0

Cons:

  • Higher price point
  • Increased power consumption

Overall Value and Recommendation

Deciding which motherboard to choose involves considering not just the cost, but how well the price correlates with the features each chipset offers. For users aiming to balance price with performance for gaming or content creation, the B550 can be an excellent choice. It provides the essentials at a lower cost, although some advanced options like extra PCIe 4.0 lanes will not be available. Content creators working with high-end Ryzen processors might find more value in X570 motherboards due to their superior features and capabilities that can enhance computing tasks.

B550 Value X570 Value Recommendation
Balances cost with essential features for mid-range builds, particularly with Ryzen 5 and Ryzen 7 processors. Offers advanced features at a higher price, suitable for high-performing builds with Ryzen 9 CPUs. Consider B550 for budget-friendly builds and X570 for builds where high performance and expandability are priorities.
