Ram slot order is used to distribute the memory slots (ram slots or memory sockets) when we install ram into the computer.
Generally, motherboards have 2-4 ram slot placements that evaluate the dual-channel being used.
In this article, we will discuss memory ram slots order. Let’s begin!
- 1 What Is Ram Slot Order: Basics
- 2 Ram Slot Types
- 3 Is RAM Slot Assortment Important
- 4 Formula: How To Find Out Ram Capacity
- 5 Is Installing Two Ram Sticks Different Than a Single Stick
- 6 How Does Motherboard Select Ram Slots
- 7 Can We Use More Than One DIMM Slots
- 8 Can We Use Three Ram Slots
- 9 Can We Use Two Different Memory Sizes
- 10 Can We Mix Two Different Brands of Ram
- 11 What Is Flex Mode Ram?
- 12 Can Damage Ram Slot Affect System
- 13 How Much MHz Is Enough for Ram
- 14 How Much Ram Is Enough
- 15 What Is the Difference Between Dual Channel and Other Channels
- 16 Why Use Dual or Quad Channel Configuration
- 17 Can We Use DDR2 and DDR3 Together
- 18 Are DDR4 and DDR5 Compatible With Each Other
- 19 How Fast Is DDR5
- 20 How Is Ram Different in Mac Compared to PC
- 21 Does Ram Slot Order Matter in Macs
- 22 Is Mac Ram Usable in Windows
- 23 Does Higher Ram Consume More Battery
- 24 Does Adding Higher Ram Impact Performance
- 25 Conclusion

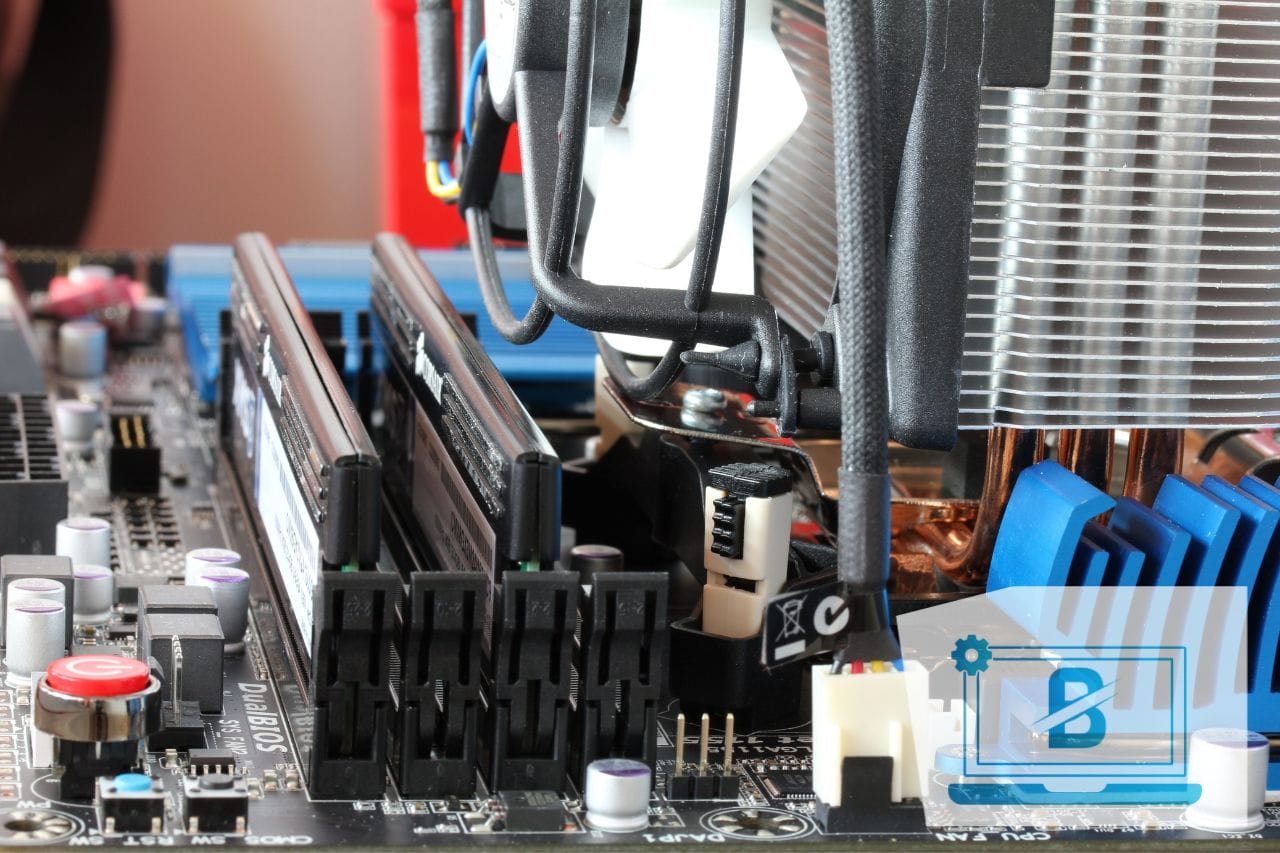

What Is Ram Slot Order: Basics
In simple words, the dual-channel order is the way ram slots are used respectively. For example, a motherboard with four ram slots will require the following:
- First ram stick will be placed in slot 1
- Second ram stick will be placed in slot 2
- Third ram stick will be placed in slot 3.
- And the fourth ram stick will be placed in slot 4.
Do note that slot 3 would be between slot 1 and 2. Hence, the first ram slot must be filled before we move on to other slots while adding modules. When dealing with the dual memory boards, we install the memory in pairs, starting from the low numbering slots.
Ram Slot Types
|Ram Type Name||Ram Type|
|SRAM||This type of memory does not need refreshing on a periodical basis. The information is read from the memory and rewritten in the same area without any changes. Uses of such ram type are found in cache for CPUs, as buffers in the hard drives and as storage options in LCD screens. It is also faster than the DRAM.|
|SDRAM||The synchronous DRAM ran in sync with the processor bus, being the first type of memory to do that. Do note that 168 pin DIMM memory modules use this memory and this can be found with the speed markings. The SDRAM memory gets rated by the bus speed and performs transfers as per the clock cycle. The PC133 modules are used and designed for the PC100 modules as well at certain times.|
|DDR SDRAM||This is the second generation of SDRAM that uses double data rates to perform more transfer as per the clock cycle. It uses a 184 pin DIMM memory and is rated by the MBps not the MHz.|
|DDR2 SDRAM||The second version of the DDR SDRAM runs the bus processor at twice the speed of the predecessor and enhances the performance. However, the latency in this memory module is more when compared to the DDR SDRAM.|
|DDR3 SDRAM||Another successor, the DDR3 provides lower voltage runs, offering double internal banks and the speeds run faster than the DDR2. The 240 pin layout makes compatibility an issue for the DDR2 and the latency is greater than both of its predecessors.|
|DDR4 SDRAM||The currently used ram type and the preferred among the other types mentioned above, the DDR4 is the mainstream name for all systems and processes. However, the introduction of the DDR5 has led to some system processes shift to the superior and advanced ram type; the DDR5.|
Is RAM Slot Assortment Important
Yes, even though the ram order is not the same for all motherboards as every single motherboard has a model that determines the order of input of these memory modules. Hence, we can install ram in any of the slots on the motherboard considering the slot works fine. In such a case, the computer will consider the installed ram relevant.
Formula: How To Find Out Ram Capacity
A thumbs rule is to see the number of memory slots a motherboard has and then use that value to divide against 8. For example, if our motherboard has 2 ram slots, we can do the following:
8/2 = 4 gb ram
Do keep in mind that this formula is not the only method and some motherboards act differently when it comes to the size of ram.

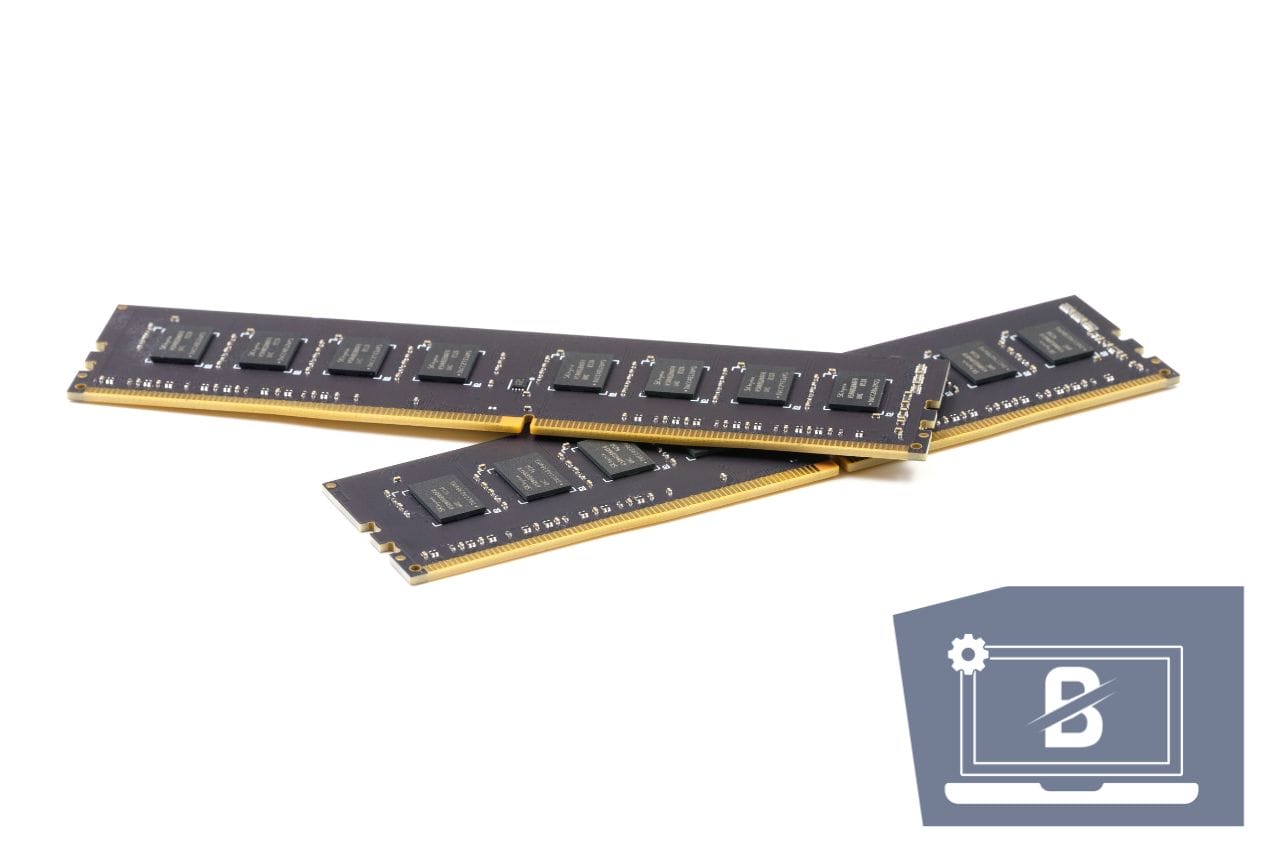

Is Installing Two Ram Sticks Different Than a Single Stick
Although the ram order does not matter in most cases, we can use a specific order to take benefit from the memory configuration feature of the motherboard. Hence, when we are installing 2 memory modules, we use the dual-channel configuration by placing the sticks in slots 1 and 3 respectively.
Doing so helps increase the bandwidth and enhance the system performance.
How Does Motherboard Select Ram Slots
Do note that mutual but exclusive ram slot order is not compatible with a motherboard? In most motherboards, we have the option to choose the single, dual, or quad-channel configuration for the efficiency of the system and bandwidth. Do note the following directions:
- For single-channel memory modules, we have a list that goes from one slot to another, starting from the closest.
- For dual-channel memory slots, we use paired sticks for the motherboard to read and rely on a single stick for backup in case of an odd number.
- Lastly, in the quad-channel configuration, we simply let the motherboard read all four sticks at once.
– Mixing Different Types of Ram Slot Order
If we consider the example of emerging a DDR3 and a DDR4 memory slot together, there will be compatibility issues with the system. Thus, we cannot mix generations of DRAM nor install them in the system. This is because the motherboard can only support one generation at a time when it comes to memory slot orders or modules.
Can We Use More Than One DIMM Slots
Yes, it is possible to use 3 DIMM slots; However, in doing so, we break the dual-channel mode; thus this step is not recommended. If we use two DIMM slots, it can provide us with the same output.
For example, using 16 gbs of ram helps with the common games and processes whereas 32 gbs of ram easily takes care of all types of processes. Therefore, using two slots of 15 gb ram sticks in DIMM slots is suitable.
Can We Use Three Ram Slots
Yes, we can but it is not a common practice because the majority of the motherboards available are dual channels? Hence, if we use the third ram slot, this will lead to the single-channel mode that will greatly impact the bandwidth; slowing the overall memory bandwidth by half. Therefore, we tend to either use a dual or quad-channel configuration.
Can We Use Two Different Memory Sizes
Yes, we can. However, using it will not get us the results we expect–increased speed and bandwidth. Instead, it will create a minimal effect on the overall performance of the system. To really see the difference, it is always recommended to use two same sizes of memory sticks for increased performance in bandwidth.

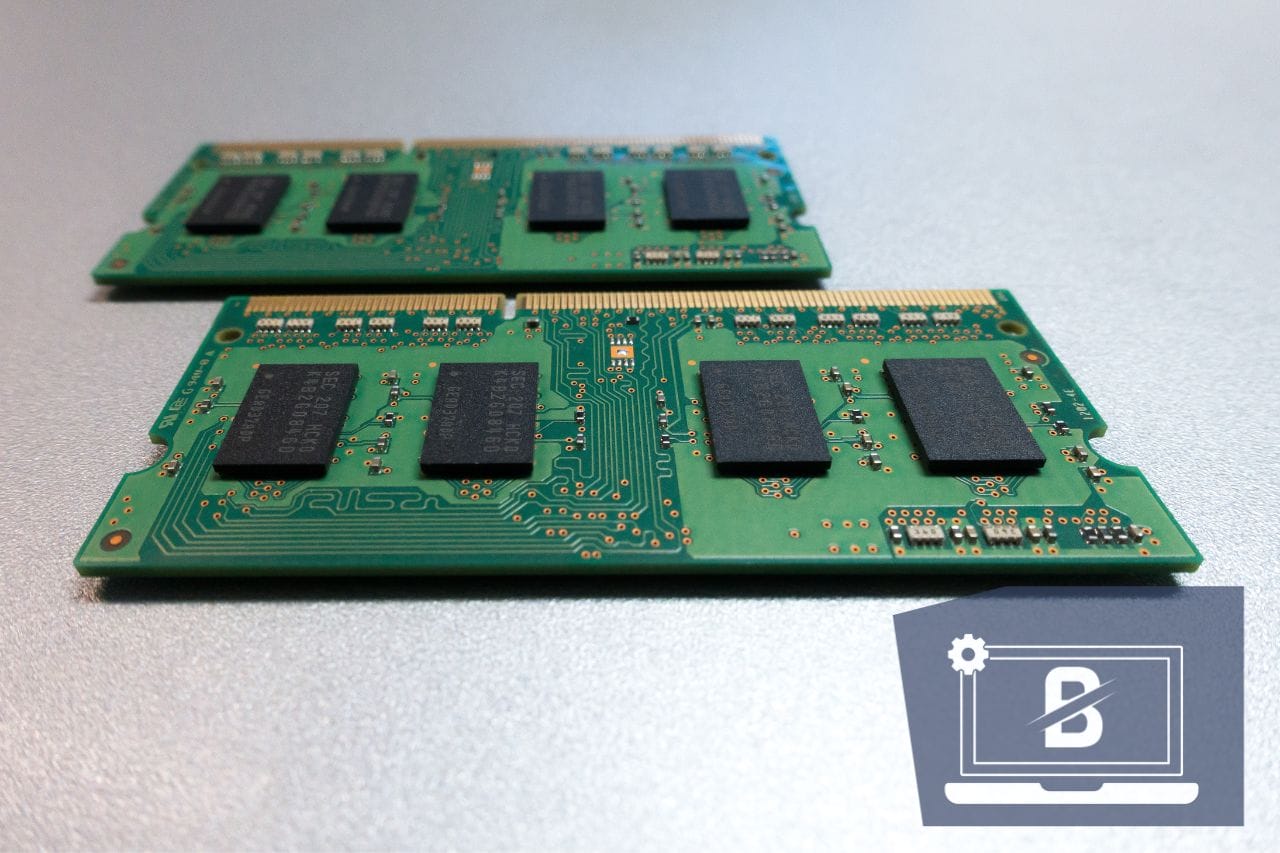

Can We Mix Two Different Brands of Ram
Yes, we can. The brand does not really matter as long as it matches the existing ram in our system.
Additionally, the workload of each system differs so such a change may not be even noticeable.
What Is Flex Mode Ram?
The flex mode ram means the flexibility of a ram. For instance, if we have a DDR4 stick of 4 gb and another 8 gb, we will still have ample space for a 8 gb ram and another 4 gb ram.
Can Damage Ram Slot Affect System
No, because the motherboard has a converter that prevents any type of short circuit in the ram. Therefore, the chances are negligible for the ram slot to get damaged. If it still is affected, the system operates effortlessly because the ram slots are linked with the motherboard directly, not the system.
How Much MHz Is Enough for Ram
A 3,200 MHz should be a good number as that is considered when we are overclocking. However, we must remember that faster ram comes at a cost of both the financial expense and the possibility of the board’s compatibility issues.
The thin line should be crossed carefully as errors in the ram slot order can impact performance and add dead weight to our wallet.
How Much Ram Is Enough
Using two slots (dual channel) of same-sized memory slots will provide us with the bandwidth we need and the efficiency in our system performance. Additionally, it also depends on the normal usage, as there are terabytes of ram slots that are in use, the ceiling on ram capacity cannot be determined. Normally, 8-16 gbs of ram is used in each slot to make the system faster.
What Is the Difference Between Dual Channel and Other Channels
Performance-wise, there is no such difference as both use more than a single stick to boost the processes.
However, the triple configuration system can get us 12 gbs of ram while the dual-channel can work with 8 gbs of ram. Hence, the only difference can be the possibility of higher memory.
Why Use Dual or Quad Channel Configuration
Instead of using a single ram order slot, using a dual or quad-channel configuration helps us provide similar capacity to that of a single increased memory stick. Nonetheless, it also increases the amount of memory by ten folds. One thing to keep in mind is that the quad-channel memory module is not supported on all the motherboards, so be sure to check the specifications first.
Can We Use DDR2 and DDR3 Together
Be mindful that DDR2 and DDR3 are not compatible as the slots are not in the same place although both consist of 240 pin connectors. This means that the memory will not sync as well.
Are DDR4 and DDR5 Compatible With Each Other
On normal motherboards, such a function is not possible but a Chinese motherboard company (Onda) has released a motherboard (H610M+) to support the DDR4 and DDR5. This motherboard is compatible with Intel’s Alder Lake processors but the catch is we can only use a single DIMM. In the long run, the overall bandwidth and performance of the system may be impacted.
How Fast Is DDR5
The speed of DDR5 was 19 percent faster than DDR4 (3200-C15) and 14 percent faster than the DDR4 (3200-C22).
For gaming purposes, the overall gain is three percent and in some games, the range further stretches till the 20 percent mark.
How Is Ram Different in Mac Compared to PC
There is no difference besides some subtle points to remember. While many users seem to get inquisitive about the ram specifications, we must note that both systems have universal components including the ram slots.
Does Ram Slot Order Matter in Macs
Yes, there is a difference in the ram slot order. We must use the top slot for a single memory stick and not a bottom slot. However, if we are using the core duo iMac system, this specific ram slot order does not matter as either top or bottom slot can be utilized.
Is Mac Ram Usable in Windows
Yes it is. There is nothing different about the two memory types except some specific brands that Macs sometimes prefer. Just check the specs of the pc we want to use the ram slots for and they should work.
A common example is a 204-pin DDR3 DIMM stick.
Does Higher Ram Consume More Battery
Yes, because there is a higher proportion of activity being done with the higher ram usage. However, the difference is not great. If we are using 4 gb or 8 gb, it should be fine. However, if we decide to boost the ram with a 12 gb ram, battery-related issues may be prevalent.
Does Adding Higher Ram Impact Performance
No, not really. As all four memory slots can be used, we do not have to worry about the performance being affected unless the placement of the ram is not done properly.
So far, we have gone in great depth to cover all the crucial information about ram slots.
Here is what we learned:
- We learned that there are seven types of ram: SRAM, SDRAM, DDR SDRAM, DDR2 SDRAM, DDR3 SDRAM, DDR4 SDRAM, and DDR5 SDRAM.
- We also learned that slot order matters and using slots 1 and 3 will provide us with better performance and bandwidth.
- We saw that motherboards do not support different types of ram but they do accept different brands.
- Lastly, we talked about the single, double, triple, and quad-channel configurations and discussed some frequently asked questions.
